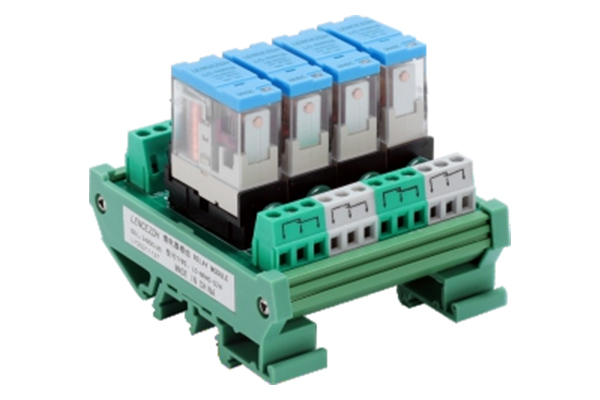

Relay Module
Relay Module

Relay Module

Industrial appliances
1. Independent 2 open 2 closed relay module.
2. Built-in LC-NR1S type electromagnetic relay, load capacity 12A250VAC (RES.)
12A 30VDC (RES.) with CCC CQC CE and other certifications.
3. Input mode: terminal block input, NPN and PNP are common, AC and DC are common.
4. Output form: 1 normally open, 1 normally closed.
5. Each group has independent LED working status indicator and surge suppression protection circuit.
6. The output end has overvoltage protection.
7. The bottom TS15/28/35 international standard rail installation.
Use:
Used for PLC output load current amplification and isolation protection, installed at the digital output end of PLC, single-chip industrial control board, time relay, button and other controllers, amplify the control current of the output end, used for load high-power equipment, weak current control strong current and other occasions to protect the core control system from damage.
Overall design:
Professional circuit design, with short circuit, anti-interference, output overvoltage or overcurrent protection circuit, safe and reliable advanced production process using wave soldering, neat and elegant appearance and guaranteed product quality.

Input operating voltage

Rated voltage DC/AC ±10%

Relay Installation

Plug-in

Rated load current

12A(16A) 250VAC /30VDC

Maximum instantaneous load current

18A(20A)

Classic input current under Un

6.5MA

Uninstall classic response time

0.5MS

Unlock classic release time

15MS

Input/output connection method

Screw connection

Suitable for cables

0.2~2.5mm²

Stripping length

6-7mm

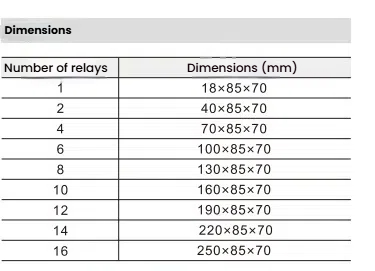

Mounting rail dimensions

15/28/35mm

Net weight test pressure resistance

2.5KV,50Hz,1MIN

Ambient temperature range

-20℃~50C

Power consumption

0.53W

×
