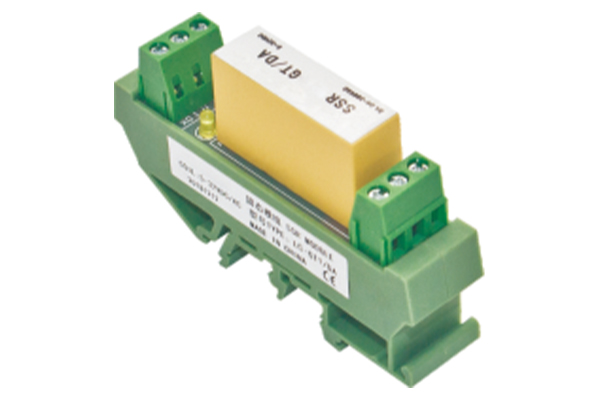

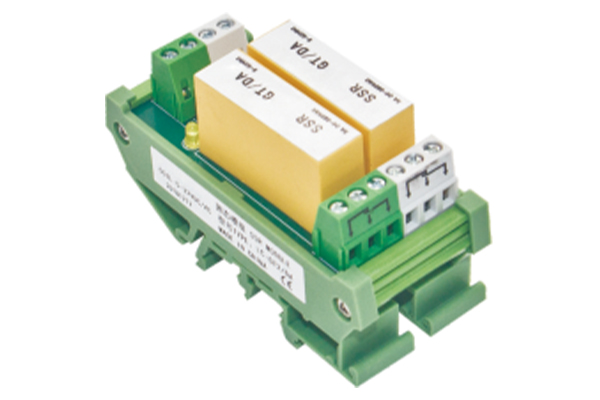

Hydraulic Valve Solid State Dedicated Module

Hydraulic valve solid state dedicated module

1. 1 set of independent control modules. 2. Built-in solid-state relay, AC load 5A24-250VAC. DC load 5A 24-220VDC. 3. Input mode: terminal block access, NPN and PNP universal, AC and DC compatible. 4. Output form: normally open (normally closed type can be customized). 5. Each set has independent LED working status indicator and surge protection circuit. 6. Solid-state internal (AC has RC arc absorption circuit). 7. Bottom international standard rail installation: 15mm, 35mm. Purpose: Used for PLC output load current amplification and isolation protection, installed at the digital output end of PLC, single-chip industrial control board, time relay, button and other controllers, amplify the control current of the output end, used for load high-power equipment, weak current control strong current and other occasions to protect the core control system from damage.
Input operating voltage Rated voltage 5-36DC/AC Relay Installation Fixed Rated load current 5A 24-250VAC/5A 24-220VDC Maximum instantaneous load current 6A Classic input current under Un 6.5MA Uninstall classic response time 0.5MS On-state leakage current ≤1.5mA Input/output connection method Screw connection Suitable for cables 0.2~2.5mm² Stripping length 6-7mm Mounting rail dimensions 15/28/35mm Net weight test pressure resistance 1500VAC Ambient temperature range -25℃~70℃ Insulation resistance 50MΩ500VDC

Input operating voltage	Rated voltage 5-36DC/AC
Relay Installation	Fixed
Rated load current	5A 24-250VAC/5A 24-220VDC
Maximum instantaneous load current	6A
Classic input current under Un	6.5MA
Uninstall classic response time	0.5MS
On-state leakage current	≤1.5mA
Input/output connection method	Screw connection
Suitable for cables	0.2~2.5mm²
Stripping length	6-7mm
Mounting rail dimensions	15/28/35mm
Net weight test pressure resistance	1500VAC
Ambient temperature range	-25℃~70℃
Insulation resistance	50MΩ500VDC
