1. The industry's most compact 4-position relay module, using Panasonic, APAN series relays with high reliability. 2. Standard pluggable base, more convenient to replace relays. 3. Built-in coil surge suppression circuit, more effective to extend contact life, with reverse protection device. 4. Clear LED action indicator, international standard DIN rail installation and fixed installation base.
Relay APAN 4-1 Normally open 1. Input rated voltage (each relay) Input rated voltage Allowable deviation Rated input voltage Allowable input current 12,24VDC 12VDC±10% 24VDC±10% 0.2A Note: When there is no relay, the input voltage value is the allowable current. Please note that the input voltage is determined by the type of relay. 2. Input voltage range (ambient temperature: 20C) Model Rated voltage Maximum allowable voltage Minimum release voltage Input Current APAN 12VDC Max.14.4VDC Min.1.2VDC 8mA±20% 24VDC Max.28.8VDC Min.2.4VDC 8.2mA±20% 3. Output power (each relay) Allowable load voltage Allowable load current 30(DC),250V(AC) 4A 4. Rated output specifications (each relay, ambient temperature: 20°C Specification Project Parameter Contact rated load Rated control current (resistive load) 4A 250VAC,4A 30VDC Maximum allowable contact power (resistive load) 750W(AC),90W(DC) Maximum allowed contact 250VAC,30VDC Maximum allowable contact voltage 5A Current minimum load (reference value) 100mV100μA

Relay APAN 4-1 Normally open
1. Input rated voltage (each relay)
Input rated voltage	Allowable deviation Rated input voltage		Allowable input current
12,24VDC	12VDC±10% 24VDC±10%		0.2A
Note: When there is no relay, the input voltage value is the allowable current. Please note that the input voltage is determined by the type of relay.
2. Input voltage range (ambient temperature: 20C)
Model	Rated voltage	Maximum allowable voltage	Minimum release voltage	Input Current
APAN	12VDC	Max.14.4VDC	Min.1.2VDC	8mA±20%
	24VDC	Max.28.8VDC	Min.2.4VDC	8.2mA±20%
3. Output power (each relay)
Allowable load voltage		Allowable load current
30(DC),250V(AC)		4A
4. Rated output specifications (each relay, ambient temperature: 20°C
Specification	Project		Parameter
Contact rated load	Rated control current (resistive load)		4A 250VAC,4A 30VDC
	Maximum allowable contact power (resistive load)		750W(AC),90W(DC)
	Maximum allowed contact		250VAC,30VDC
	Maximum allowable contact voltage		5A

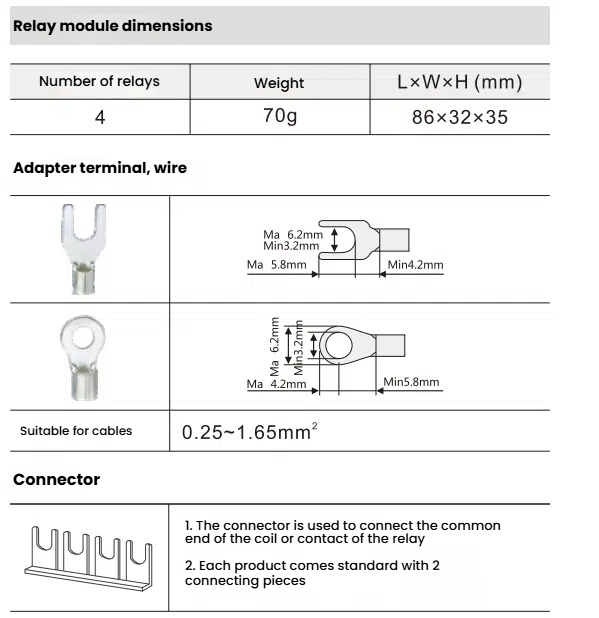

	Current minimum load (reference value)		100mV100μA
