Time Relay

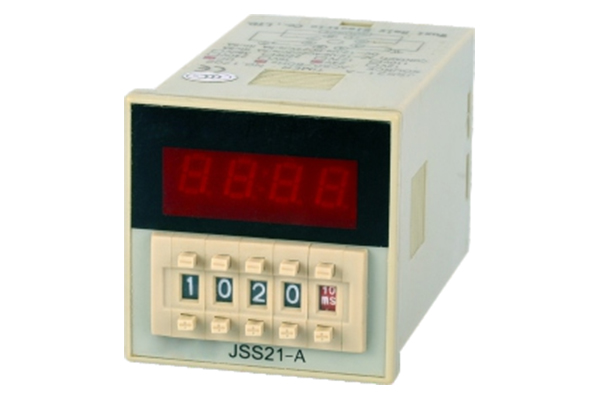

JSS21 digital time relay is a product developed by our company to meet the needs of customers for large panel display. It is controlled by professional integrated circuits and has the characteristics of reliable operation, strong anti-interference ability, strong load capacity and easy installation.

Consult

Features
Technical Indicators
Overall Dimension

1. Adopting special IC, wide delay range and strong reliability. ST3PA-C has four-speed delay control. 2. The machine body is equipped with accessories, which can be installed in screw, rail and panel. 3. JSS21 is a 48x48 time relay, and the data can refer to the ST3P series. 4. The AC transformer is used to reduce the voltage, it can reliably isolate strong and weak electricity. 5. JSS21-A is a power-on delay type with ten-speed ratio, and JSS21-C is a power-on delay type with instantaneous power-on. Appearance installation size: Face frame opening size: 45mmx45mm Adapter base Panel installation: TX9+P3G-08 Rail installation: TP98X
